Inverters for all control systems

As a pioneer of AC motor controller technology, ZAPI has 30 years of experience in developing a full line of AC controllers. These units feature a multi-plex communication platform, with unmatched flexibility. They offer enhancements in vehicle control, operation, performance and efficiency.

The ZAPI family of AC controllers represents the widest range of AC producers currently available in the low voltage electric vehicle market. The power capabilities of these systems range from 0.5kW to over 35kW. ZAPI is leader in development of control systems for battery powered vehicles. As a result of continuous investment in new technology, ZAPI remains the market leader in high performance AC applications.

In addition to the inverters for single drive motors, the product range also includes:

  • Dual controllers for two drive motors
  • Combi controllers for one drive motor + one DC motor
  • HP controllers for one pump motor
  • DUAL & HP controllers for two drive motors + pump motor



Select your desired product:

Please select the desired filters. Multiple selection possible. To see all products, please deactivate the filter "current control generation".

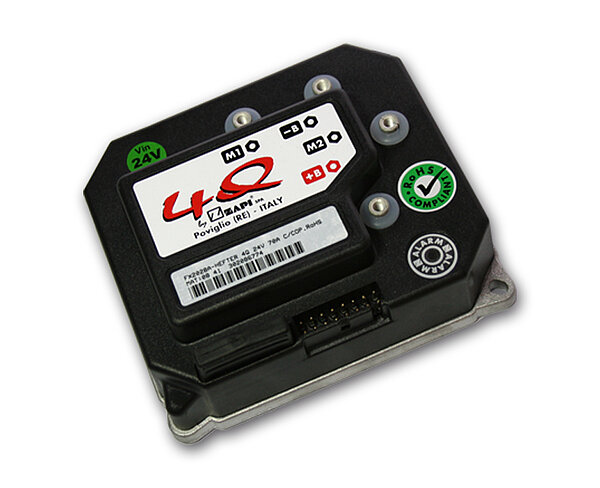

Controller PM4Q

PM4Q drive controls are suitable for applications such as hand pallet trucks, cleaning and sweeping machines, and smaller commercial vehicles. Compatible are motors with power outputs between 300 W and 800 W.

The controllers support regenerative braking and are equipped with MOSFET technology, microprocessor logic, a fault memory and an internal battery discharge indicator (BDI). An internal counter provides information about the operating hours.

The digital programming of the traction control system is done via the console.

Technical specifications

Motor Technology Controler for Permanent Magnet Motors
Input Voltage 24V, 36/48V
Level of Performance Low
Brand ZAPI
Application -

Motor type

Permanent magnet motor

Input voltage

24 V

36 V

48 V

Current

70 – 110 A

50 A

Environmental temperature

-30°C .... +40°C

Protection

IP64

Dimensions

120 x 140 x 48 mm
