The VCM controller family is a group of I/O and valve controllers and includes the function for the vehicle control software. Depending on the application requirements, different I/O sets are available, also as Double Micro and/or Double CAN version.

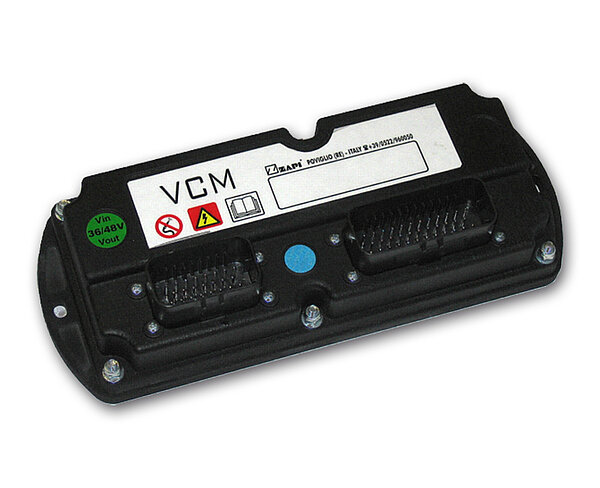

VCM
Technical specifications
| Brand | ZAPI |
|---|---|
| Application | - |
Function | Central controller |
Features | e.g. cloud-enabled, CAN trace, online access to the vehicle, e-mail, CAN bus values of the vehicle can be read and transmitted (cloud), etc. |
Voltage | 24, 36, 48, 72, 80 V |
Communication | CAN; serial |
Ambient temperature | - 40°C ... + 40 °C |
Protection | IP65 |
Dimensions | 225 x 90 x 49 mm |
