Electromobility anywhere.

Whether baggage transport, aircraft tugs or work platforms - our established drive technology is used everywhere here.

Custom made lithium batteries

Regardless of the application - we have the right battery solution for you with products from
FlashBattery. Click here for more informations

Whether electric buses, scooters, cars, trucks

Our products not only support all-electric vehicles, but together with combustion engines they also form an efficient, environmentally friendly and practical hybrid system.

Whether small and agile or large and compact ...

... our product range includes all the components you need for an electric or hybrid vehicle.

Electric and hybrid solutions

Starting with pallet trucks and order pickers, through high rack forklifts and reach trucks,
to tugs and forklifts. We have the right product for you!

Electric mobility in agriculture

Excellent controllability and compact design are only two of the advantages of our components.

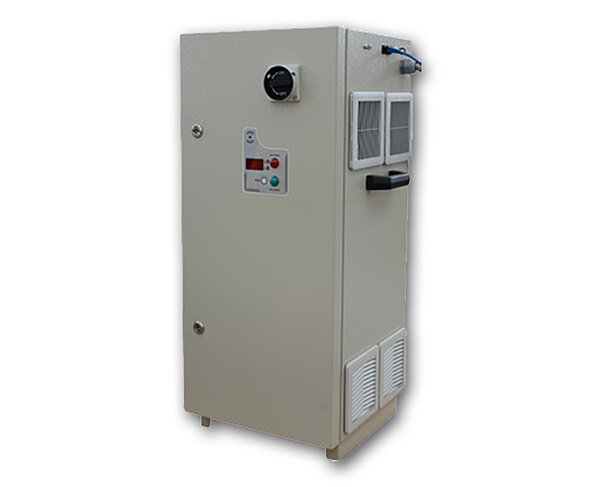

Charger MG18

The chargers have been developed with the aim of avoiding battery room installations and thus reducing the need for battery replacement. As a result, vehicles can operate up to 3 shifts per day without interruption by contributing as much as possible through intermediate or occasional charging.

The battery is charged up to 80% daily to avoid gas emissions. To prevent decomposition processes in the battery, equalisation charges can be carried out daily/once a week/never/as required. A reboost of enormous capacities from 500 to 1500AH is possible.

The MG18 charger is a turnkey system with a battery data logger and the ZIVAN Data Drone App. This allows real-time monitoring of the vehicle, battery and charging, as well as maintenance and operating costs. The Data Drone software delivers the results via WiFi to a customized and secured cloud.

One MG18 charger unit consists of two NG9 or two NG9+ chargers combined in one housing.

Technical specifications

Power Connection 3-phase
Output Voltage 12/24 V, 36/48 V, 72/80 V, 96/120 V
Level of Performance High
Brand ZIVAN
Application -

Battery

Lead acid, lead gel, AGM, NiCd, lithium etc.

Type

three-phase

Input voltage

400 VAC  Â±  15 %

Input frequency

50 - 60 Hz

Output voltage

24, 48, 80, 96 V

max. output current

400 A

Environmental temperature

-20°C .... +50°C

Efficiency

> 87 %

Protection

IP20

Dimensions

472 x 401 x 825 mm

Optional

external switching between two charging curves
