ZIVAN Battery charger

The majority of battery charger producers manufacture for the specific needs of their own industrial trucks. ZIVAN (a sub company froth the world wide operating ZAPI group) and a specialised producer, develops battery chargers for a range of applications, terms and needs for battery powered vehicles. For every application you will find the right charger here.

For all questions about charging technology ATECH Antriebstechnik is your supplier in all German speaking regions. Our service includes not only sales and repair service but we are also a competent partner in planning charging stations and charging management. Our products are coordinated for all areas and find the best economical solutions for your logistics vehicle pool, no matter what size.

Convince yourself of our competence.

Select your desired product:

Please select the desired filters. Multiple selection possible.

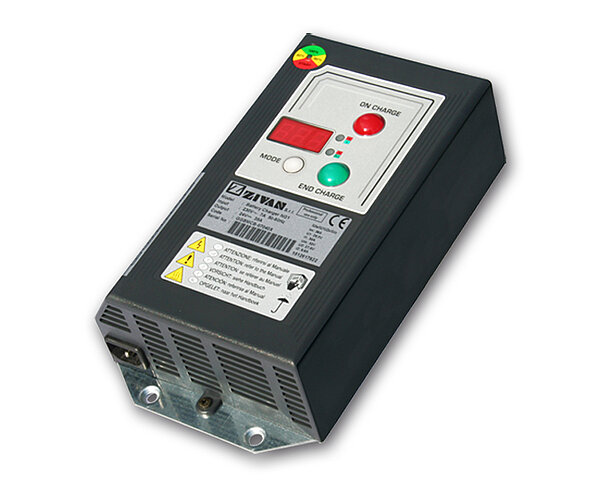

Charger NG1 CAN

The NG1 CAN chargers are compact and innovative devices that offer exceptional versatility, reliability and efficiency. The installation of different software allows the modification of charging characteristics and adaptation to any type of battery. Due to its compact size and light weight, this model is particularly suitable for on-board installations in addition to external installations. This allows charging to be done anywhere and does not require a special charging area.

Due to the large memory capacity it is possible to store information about the charging cycles and evaluate them accordingly to increase the performance. A button on the optional display allows charging characteristics and parameters to be changed - so the device can be quickly adapted to the battery type.

The NG1 CAN chargers are equipped with optoisolated CAN bus interface and CAN protocol for Lithium Battery Management Systems (BMS).

Technical specifications

Power Connection 1-phase
Output Voltage 12/24 V, 36/48 V, 72/80 V, 96/120 V
Level of Performance Low
Brand ZIVAN
Application -

Battery

Lead acid, lead gel, AGM, NiCd, lithium etc.

Type

single-phase

Input voltage

230 VAC  ±  10 %

115 VAC ±  10 %

Input frequency

50 - 60 Hz

Output voltage

12, 24, 36, 48, 72, 96 V

max. output current

60 A

Environmental temperature

-20°C .... +50°C

Efficiency

> 85 %

Protection

IP20

Dimensions

160 x 295 x 84 mm

Optional

external switching between two charging curves
