ZIVAN Battery charger

The majority of battery charger producers manufacture for the specific needs of their own industrial trucks. ZIVAN (a sub company froth the world wide operating ZAPI group) and a specialised producer, develops battery chargers for a range of applications, terms and needs for battery powered vehicles. For every application you will find the right charger here.

For all questions about charging technology ATECH Antriebstechnik is your supplier in all German speaking regions. Our service includes not only sales and repair service but we are also a competent partner in planning charging stations and charging management. Our products are coordinated for all areas and find the best economical solutions for your logistics vehicle pool, no matter what size.

Convince yourself of our competence.

Select your desired product:

Please select the desired filters. Multiple selection possible.

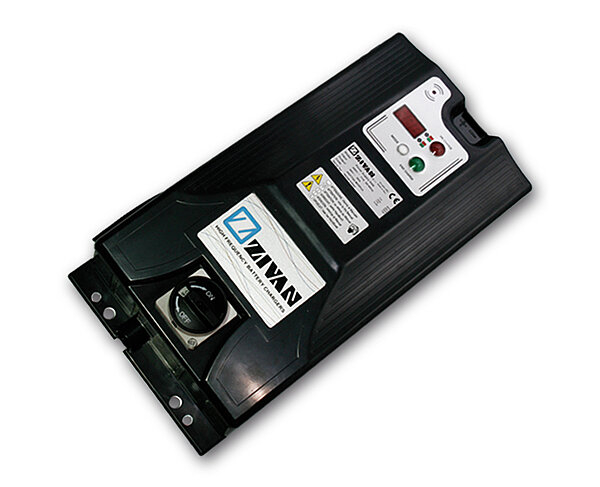

Charger NG9 CAN

The NG9 CAN chargers convince with powerful microprocessors. Thanks to their enormous memory capacities and computing power, these ensure optimal analysis options. The most important information regarding past charging cycles can be retrieved and thus evaluated. Thus, the performance of the charger can be effectively increased.

With a single button, the charging characteristics can be changed quickly and easily, information shown on the display and the profile adapted to the battery type.

The NG9 CAN chargers are equipped with optoisolated CAN bus interface and CAN protocol for Lithium Battery Management Systems (BMS).

Higher currents with otherwise almost identical characteristics are offered by the NG9+ CAN model.

Technical specifications

Power Connection 3-phase
Output Voltage 12/24 V, 36/48 V, 72/80 V, 96/120 V, High-Voltage
Level of Performance High, High-Voltage
Brand ZIVAN
Application for high-voltage applications

Battery

Lead acid, lead gel, AGM, NiCd, lithium etc.

Type

three-phase

Input voltage

400 VAC  Â±  15 %

Input frequency

50 - 60 Hz

Output voltage

24, 36, 48, 72, 80, 96, 108, 120, 144, 216, 312, 340 V

max. output current

144 A

Environmental temperature

-20°C .... +50°C

Efficiency

> 90 %

Protection

IP20

Dimensions

267 x 546 x 120 mm

Optional

external switching between two charging curves
