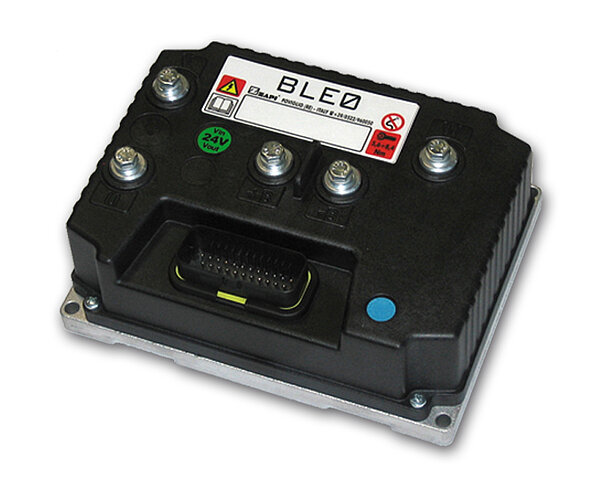

BLE-0 2µ

The inverter BLE-0 is suitable for controlling several types of motors in the range of 2kW to 5kW continuous power. Applications include order pickers, forklifts, special vehicles and high-lift trucks.

The field-updatable firmware can be fully adapted to OEM specifications or a CANopen solution can be supplied to provide extensive flexibility.

This ZAPI motor controller is equipped with CANBUS communication, flash programming and the patented ZAPI algorithm as standard and is compatible with ZAPI's standard diagnostic tool.

Technical specifications

Motor Technology Inverter for Synchronous Motors
Input Voltage 24V, 36/48V, 72/80V
Level of Performance Medium
Brand ZAPI
Application -

Motor type

AC induction, AC synchronous, brushless DC motor

Connector

AMPSEAL

Environmental temperature

-40°C .... +40°C

Input voltage

24 V

36 / 48 V

max. current

220 A

180 A

max. current PW version

320 A

280 A

Protection

IP65

Type

with aluminium plate or cooling profile

Dimensions

150 x 200 x 79mm

Digital inputs

13

Analogue inputs

2

Incremental encoder inputs

1

Analogue outputs, negative

2

Digital outputs, negative

8

Digital outputs, positive

1
