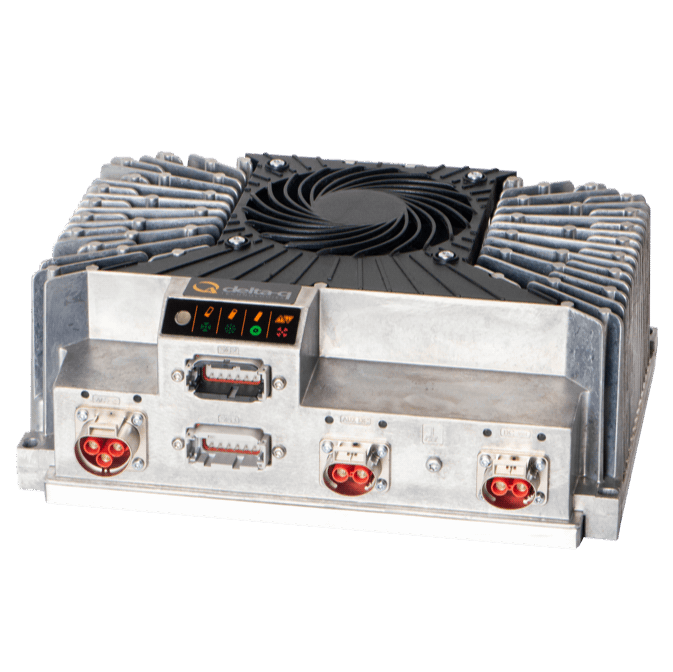

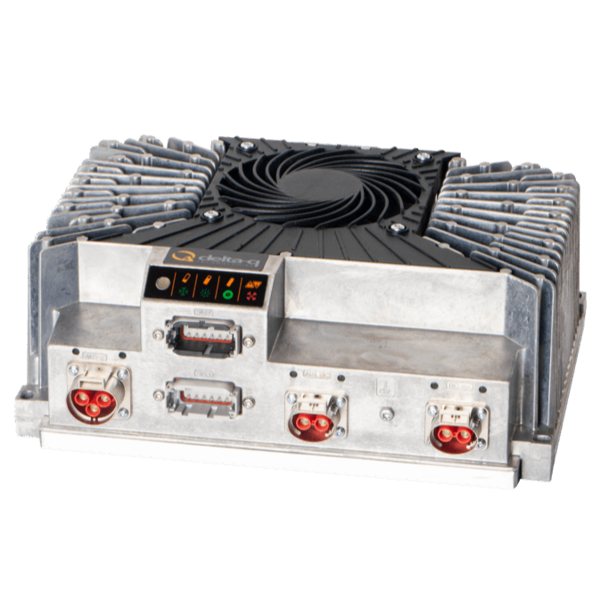

Charger XV3300

Built for light electric on-road vehicles and non-road mobile machinery, Delta-Q Technologies XV3300 can optimally charge any nominal 48-, 80-, or 96-volt battery pack of any chemistry.

Its unique design combines optional a high-performance 3.3 kW charger, a 500W DC-DC converter, and an EV charging station interface, in a highly compact package. The XV3300 is the ideal solution for powertrain electrification.

Technical specifications

Series -

Battery

Lithium, Lead-Acid

Type

single-phase

Input voltage

85 – 265 VAC

Input frequency

50 - 60 Hz

Output voltage

58, 65, 120 V

Max. output current

65A/85V - 40A/120V

Max. output power

3300 W

Efficiency

bis zu 93 %

Protection class

IP66/IP67

Environmental temperature

-40°C .... +65°C

Dimensions

300 x 235.3 x 112.9 mm

Optional
  • DC/DC converter
  • EVSE interface

(must be specified when ordering)
