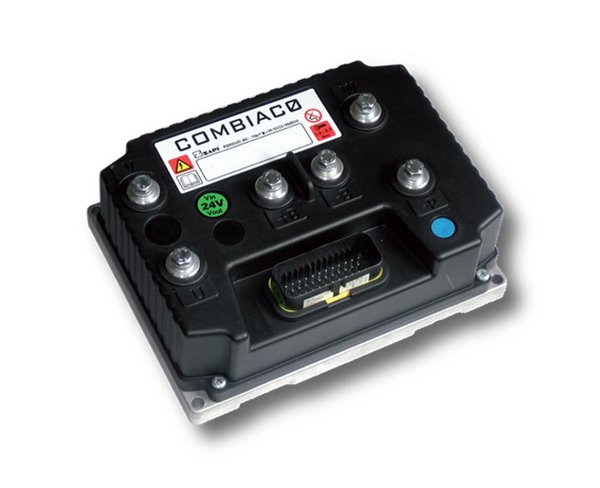

Combi AC-0 2µ

The Combi AC-0 inverters are used to control AC induction, BLDC and PMSM motors in the range of 2 kW to 5 kW continuous power. They are also designed to control DC motors connected in series, which are typically used as pump motors. The AC and DC sections are combined in the same inverter.

Typical applications include: Industrial trucks, forklifts, low lift order pickers, small counterbalanced trucks and aerial work platforms. The inverters are standard equipped with CAN-Bus interface and are compatible with ZAPI's diagnostic tools and PC console.

The inverters are also available as power version.

Technical specifications

Motor Technology Inverter for Asynchronous Motors
Input Voltage 24V, 36/48V, 72/80V
Level of Performance Low, Medium
Brand ZAPI
Application -

Motor type

AC induction, AC synchronous, brushless DC

Connector

35-Pin AMPSEAL

Ambient temperature

-40°C .... +40°C

Input voltage

24 V

36 / 48 V

80 V

max. current

220 A

180 A

-

max. current DC chopper

270 A

220 A

-

max. current power version

320 A

280 / 320 A

200 A

max. current DC chopper

power version

400 A

300 A

200 A

Protection

IP65

Dimensions

150 x 200 x 79 mm

Digital inputs

13

Analogue inputs

2

Incremental encoder input

1

Motor temperature sensor input

1

Analogue outputs,

negatively controlled

2

Digital outputs,

negatively controlled

8

Digital output,

positively controlled

1
