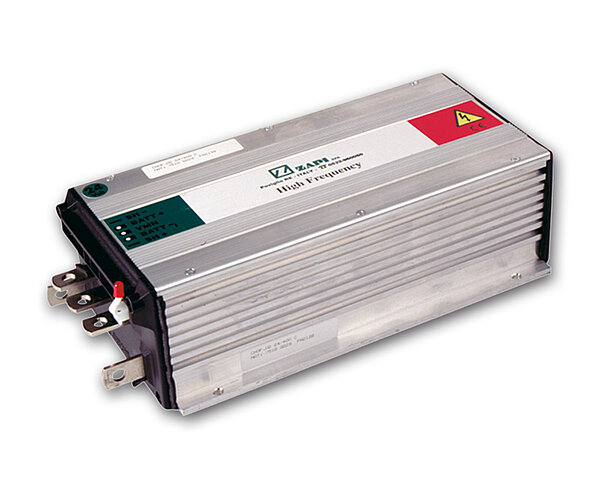

Controller H2

This staple of ZAPI's offering is suitable for operation on medium and large capacity machines with DC series-wound motors from 2 kW to 20 kW.

The controllers support regenerative braking and are equipped with MOSFET technology, microprocessor logic and an error memory.

The digital programming of the drive control is done via the console.

Technical specifications

Motor Technology Impulse Controler for Series Motors
Input Voltage 24V, 36/48V, 72/80V, 96/120V
Level of Performance Medium, High
Brand ZAPI
Application -

Motor type

DC series-wound motor

Input voltage

24 V



Input current

400 A



Environmental temperature

-30°C .... +40°C

Protection

IP54

Dimensions

150 x 374 x 84 mm
