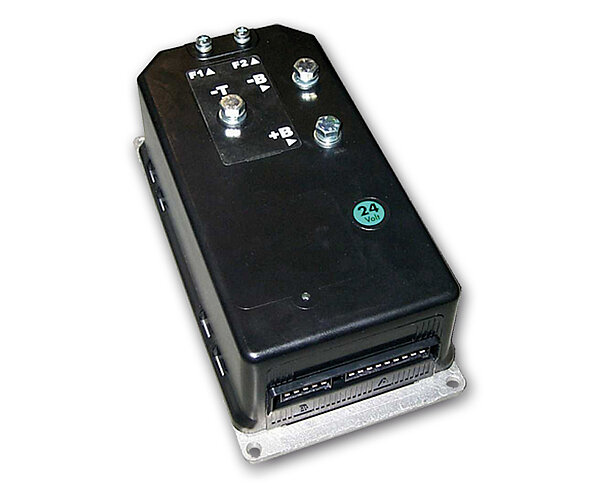

Controller SEM-1 CAN

SEM-1 CAN drive controllers are suitable for road applications and forklift trucks with DC motors between 1.0 kW and 9.0 kW power.

The controllers support regenerative braking and are equipped with MOSFET technology, microprocessor logic, a fault memory and an internal battery discharge indicator (BDI). An internal counter provides information about the operating hours.

The digital programming of the traction control system is done via the console.

Technical specifications

Motor Technology Impulse Controler for Shunt Motors
Input Voltage 36/48V
Level of Performance Low, Medium
Brand ZAPI
Application -

Motor type

Separately excited DC motor

Input voltage

48 V

Input current

400 A

Environmental temperature

-30°C .... +40°C

Protection

IP65

Dimensions

248 x 128 x131 mm
