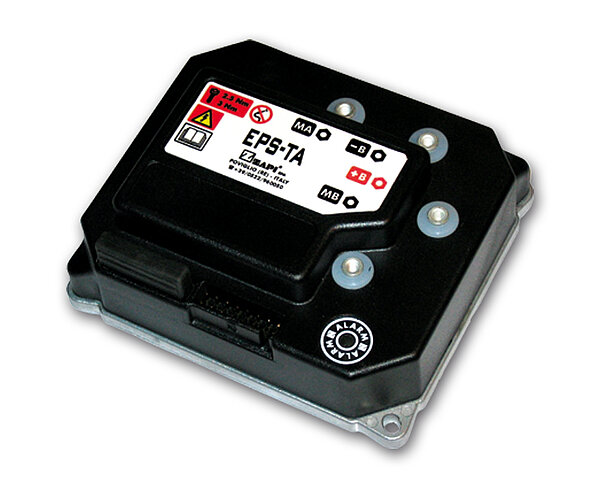

Steering controller EPS TA

The EPS TA (Torque Assisted) steering control is a compact torque-controlled steering control which is particularly suitable for vehicles with tiller (e.g. drawbar-mounted machines). With the EPS TA, the engine provides additional steering torque, which makes the operation of the vehicle much easier.

The steering control is equipped with a CAN bus interface, dual microprocessors and flash memory. To comply with category 3 (standard EN-1175 safety of industrial trucks), the EPS-TA is equipped with a master microcontroller (control functions) and a slave microcontroller (safety functions).

Technical specifications

Motor Technology Steering Controler | Equipment
Input Voltage 24V
Level of Performance Low
Aktiv -
Brand ZAPI
Application -

Motor type

AC steering motor

Type

Stand-Alone, not integrated

Control type

without wire guide

Environmental temperature

-40°C .... +40°C

Input voltage

24 V

Input current

50 A

Protection

IP54

Dimensions

122 x 142 x 50 mm

Connector

Molex Mini-Fit
