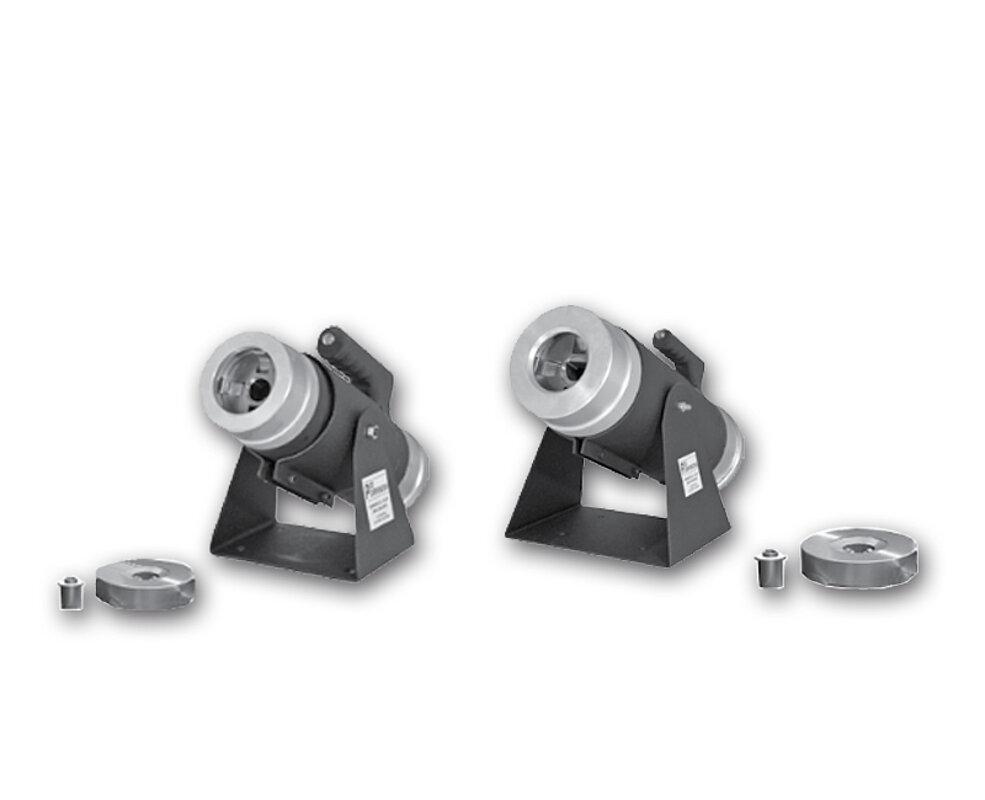

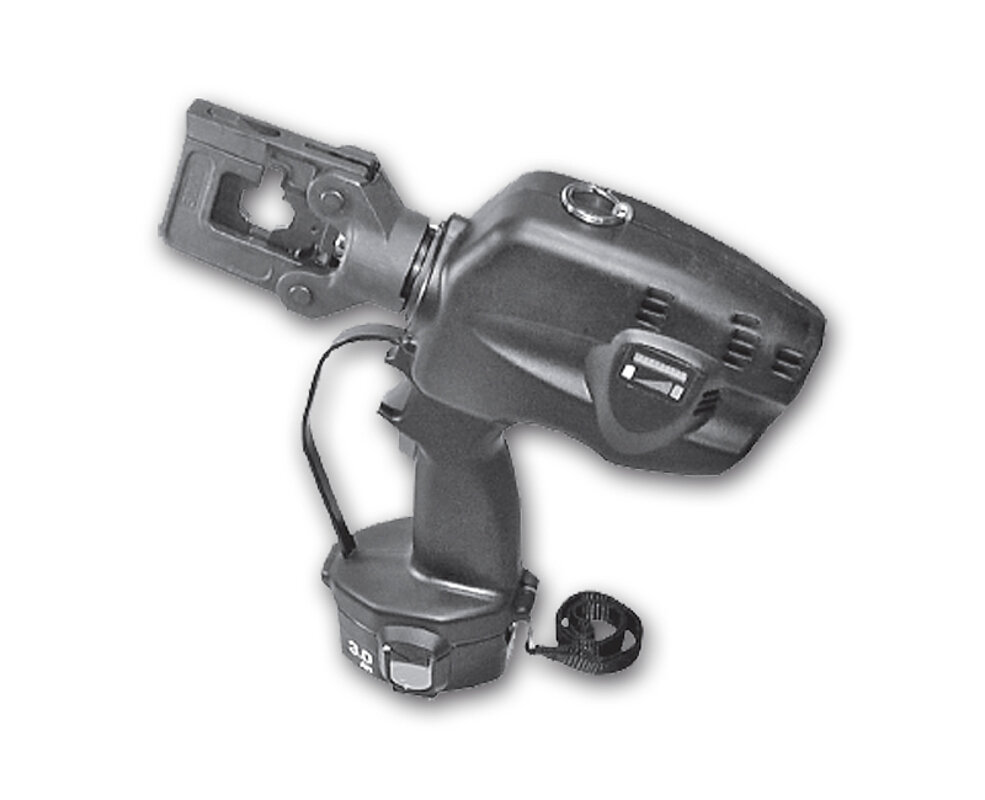

All crimping tools are available in mechanical, hydraulic hand or foot pump technology or in pneumatic design.
A) Contact cross section with the cable cross section:
Make sure that the contact cross section corresponds to the cable cross section.
B) Stripping length:
The stripping length of the cable should have the exact length as the contact hole depth.
C) Crimping variants:
Depending on the tool, the following crimpings are allowed:
D) Execution:
For all crimpings, care must be taken to ensure that the longitudinal axis of the contact is not bent and that the contact sleeve does not show any outwardly protruding change in the original circumference. Otherwise, the flexibility of the contact will no longer be ensured by bumping against the inner wall of the plug; this could impair the smooth start of operation.

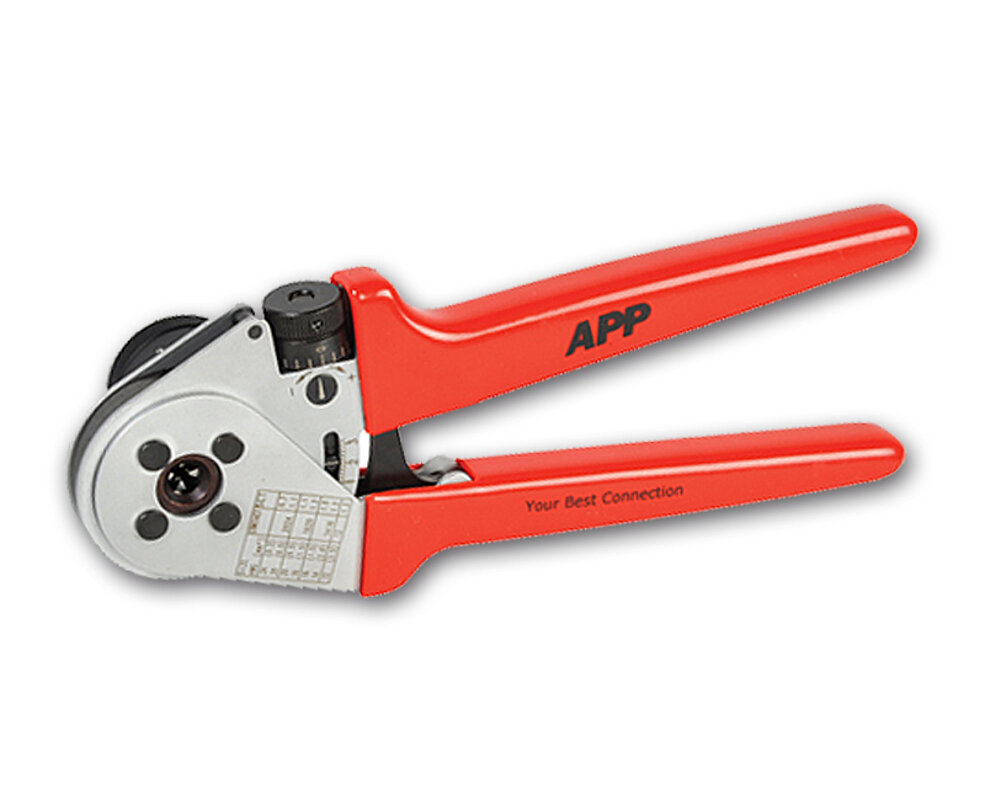

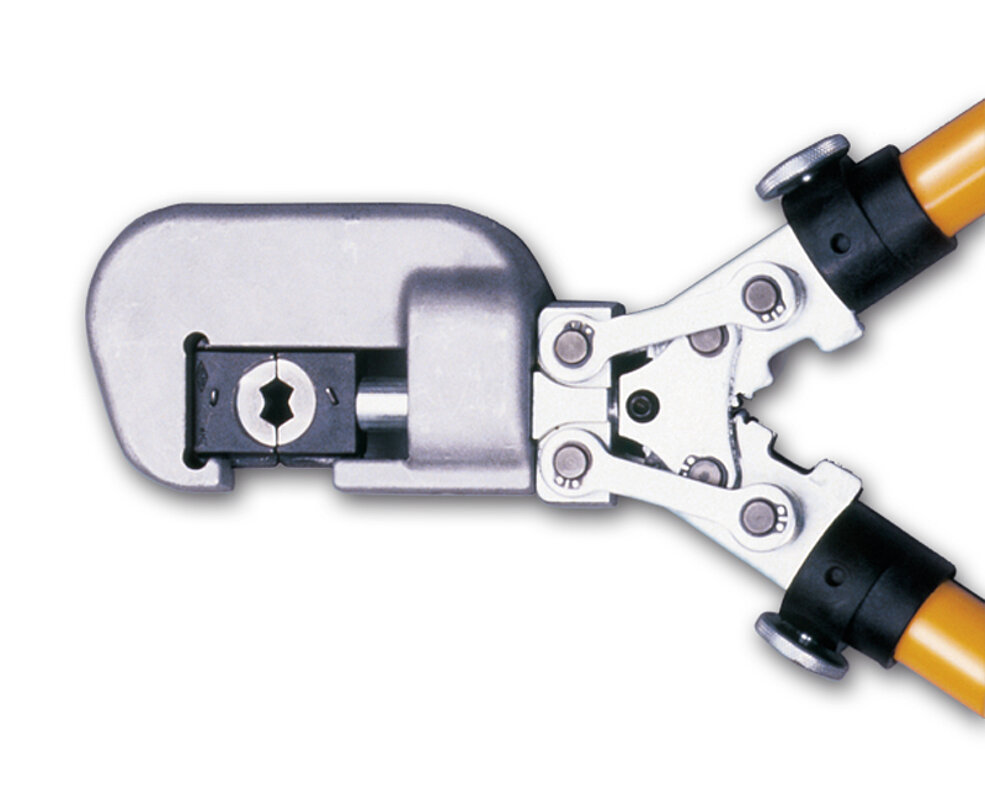

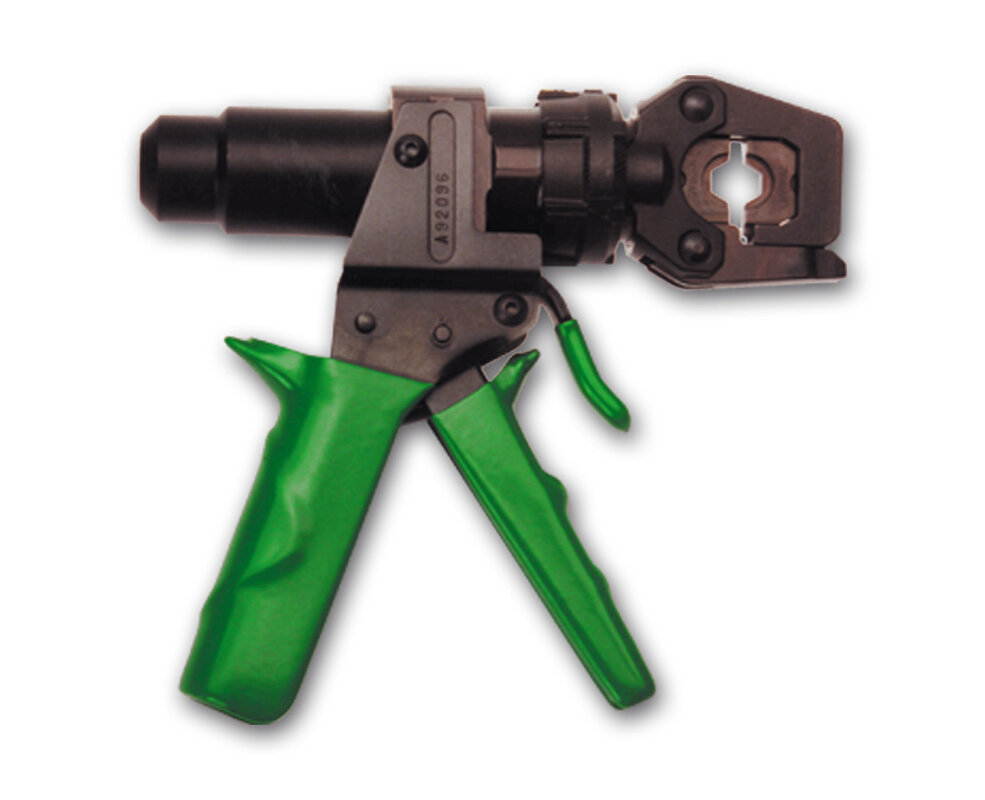

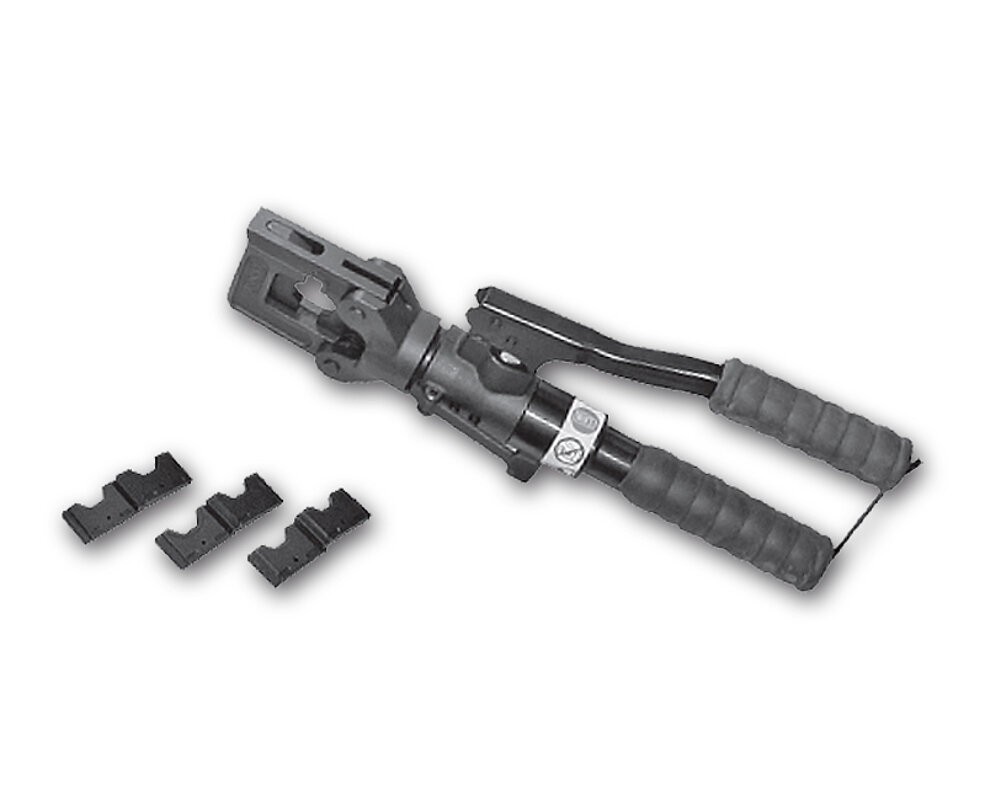

E) Recommended tools:
Article no. | Pliers version | Crimping form | Crimping section |
55800-00 | mechanical* | WMS-Type | 10 mm² - 95 mm² |
58007-00 | hydraulic | WMS-Type | 10 mm² - 95 mm² |
57003-00 | hydraulic* | WMS-Type | 10 mm² - 95 mm² |
* Delivery only in connection with transport case #5700692

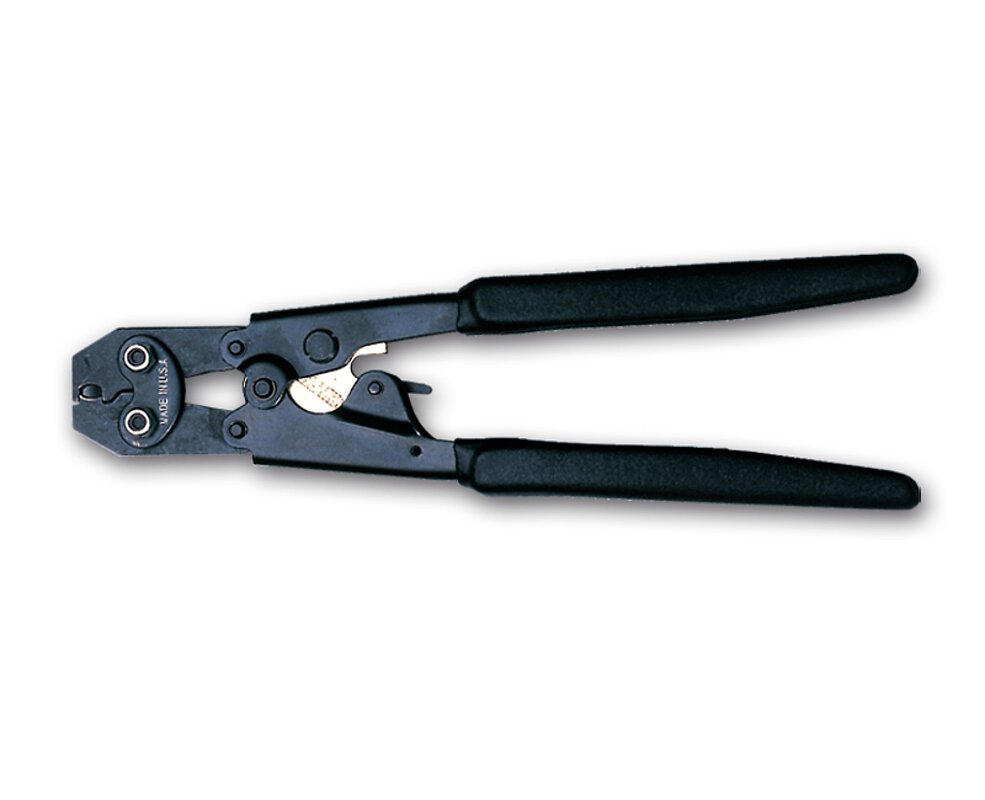

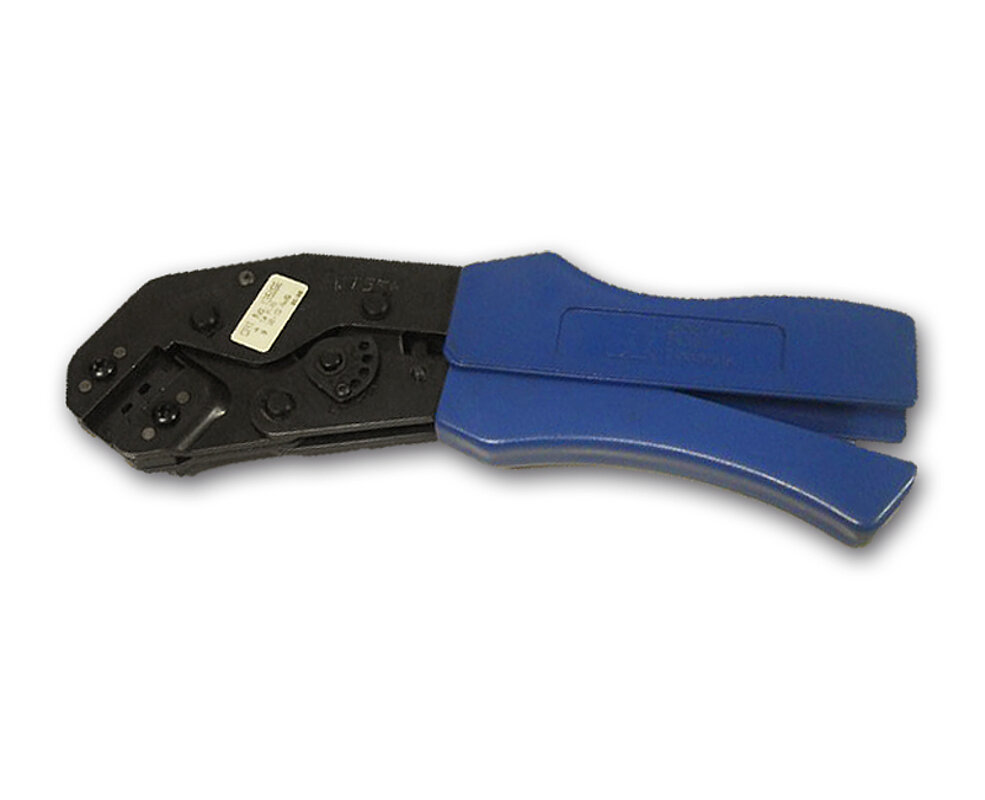

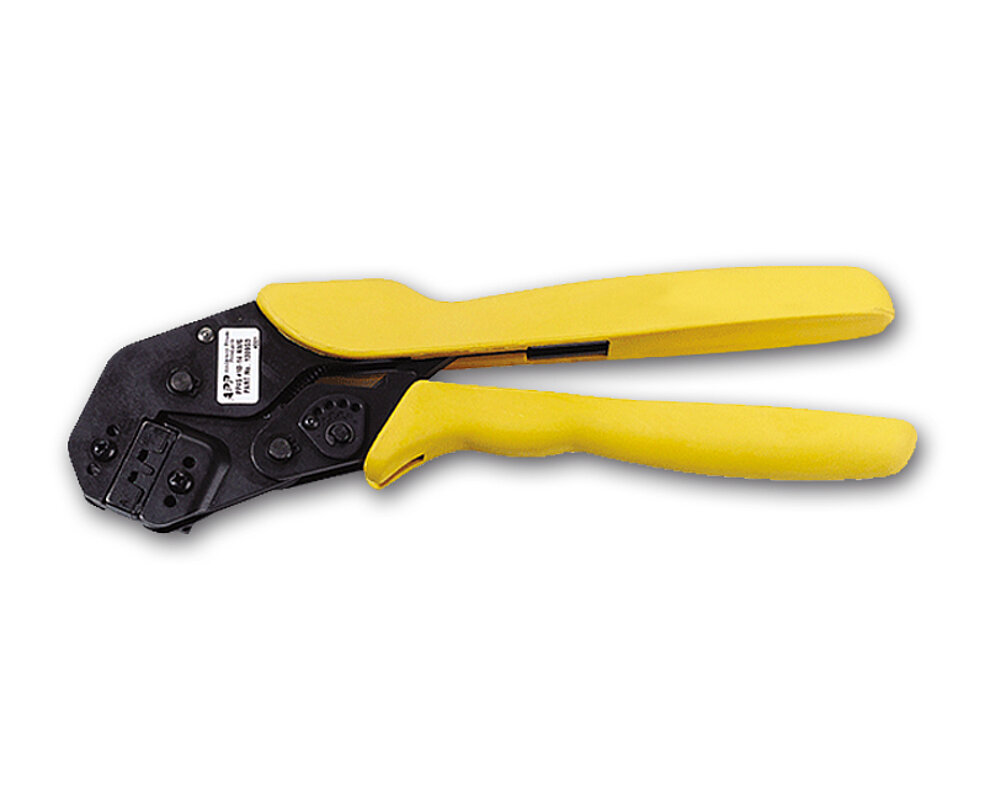

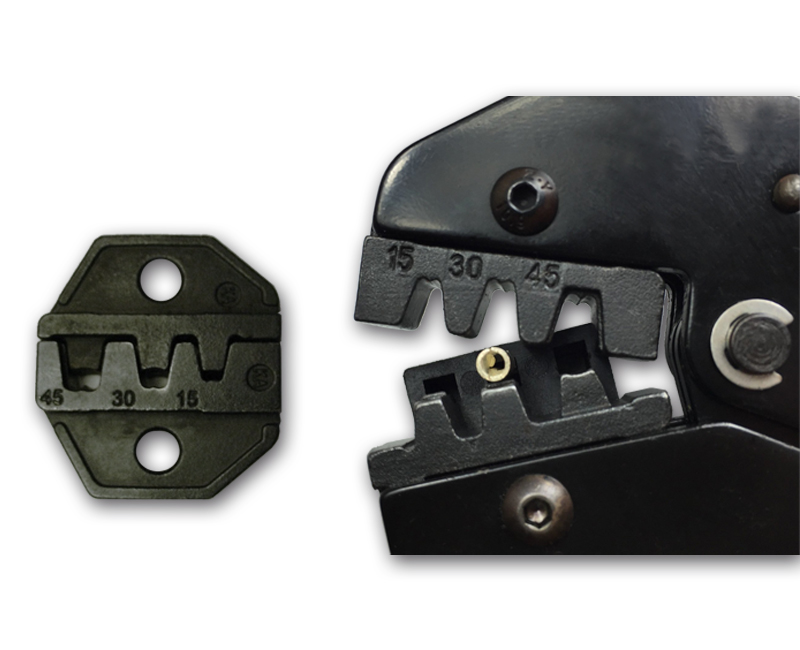

Article no. | Contact / Conductor | Use with pliers |
69879-60 | 10 mm² | 58007-00 |
69879-62 | 16 mm² | 58007-00 |
69879-63 | 25 mm² | 58007-00 |
69879-64 | 35 mm² | 58007-00 |
69879-65 | 50 mm² | 58007-00 |
69879-67 | 70 mm² | 58007-00 |
69879-68 | 95 mm² | 58007-00 |
69879-61 | AWG 6 (13,30 mm²) | 58007-00 |
69879-64 | AWG 1/0 (53,50 mm²) | 58007-00 |
69879-66 | AWG 2/0 (67,43 mm²) | 58007-00 |
69879-69 | AWG 3/0 (85,01 mm²) | 58007-00 |
55863-00 | 10 mm² | 55800-00 and 57003-00 |
55863-22 | 16 mm² | 55800-00 and 57003-00 |
55863-23 | 25 mm² | 55800-00 and 57003-00 |
55863-24 | 35 mm² | 55800-00 and 57003-00 |
55863-25 | 50 mm² | 55800-00 and 57003-00 |
55863-19 | 70 mm² | 55800-00 and 57003-00 |
55863-28 | 95 mm² | 55800-00 and 57003-00 |
55863-21 | AWG 6 (13,30 mm²) | 55800-00 and 57003-00 |
55863-24 | AWG 1/0 (53,50 mm²) | 55800-00 and 57003-00 |
55863-26 | AWG 2/0 (67,43 mm²) | 55800-00 and 57003-00 |
55863-29 | AWG 3/0 (85,01 mm²) | 55800-00 and 57003-00 |
Article no. | Pliers version | Application with |
1351G1 | mechanical | PP 15A/30A |
1351G2 | mechanical | PP 45A |
1352G1 | mechanical | PP 75A/SB50/SBE80 |
1374 | mechanical | PP 10A |
1368 | hydraulic | SB/SBX/SBE |
Article no. | Contacts | Cable cross section AWG in mm² | Application with |
1309G1 | 1202G1 | #14 - 16 (2.5-1.3) | PP 10A |
1309G1 | 1203G1 | #14 - 16 (2.5-1.3) | PP 10A |
1309G2 | 1331 | #12 - 16 (4-0-1.3) | PP 15A/30A |
1309G2 | 1332 | #16 - 20 (2.5-1.3) | PP 15A/30A |
1309G3 | 261G2-LPBK | #10 - 14 (5.3-2.5) | PP 45A |
1309G4 | 1307 | #6 (16.0) | PP 75A/SB50/SBE80 |
1309G4 | 5900 | #6 (16.0) | PP 75A/SB50/SBE80 |
1309G4 | 5915 | #10 - 12 (6.0-4.0) | PP 75A/SB50/SBE80 |
1309G4 | 5952 | #8 (10.0) | PP 75A/SB50/SBE80 |
1309G4 | 903G1 | #8 (16.0) | PP 75A/SB50/SBE80 |
1309G4 | 904G1 | #10 - 12 (6.0-4.0) | PP 75A/SB50/SBE80 |
1309G4 | 80S16 | 16,0 mm² | PP 75A/SB50/SBE80 |
