Description:
SBS connectors have been specially developed for applications in the high-voltage range. In this context, the highest attention was paid to the operator protection. The new design of the SBS connector family reduces the danger of contact with open contacts to a minimum.
Likewise, reverse polarity of the colored SBS plug connections when using different amperages in a vehicle due to differences in the housing construction of the coded plugs is impossible. Grooves on the side of the connector allow it to be mounted on a plug-in panel. Ergonomic recessed grips facilitate plugging and unplugging.
Scope of application:
Ergonomic design and touch protection speak for the latest product of the ANDERSON multipole range, color-coded, optionally with strain relief. Plug for 50A rated current.
Additional accessories in the use of the connectors are:
- Reducing sleeves
- Cable clamps

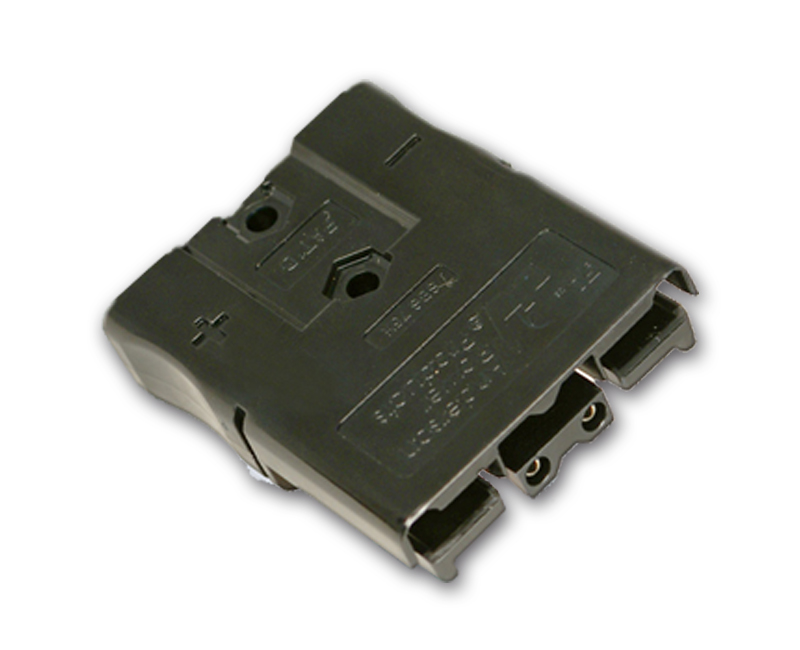

SBS50 | 50A connector 2-pin, complete, housing + 2 contacts
| Article no. | Volt | Color | Cross section in AWG | Cross section in mm² |
| SBS50GRA#6* | 36V |  | 6 AWG | 11,2 mm² |
| SBS50GRA#10/12* | 36V | | 10-12 AWG | 11,2 mm² |
| SBS50BLU#6* | 48V |  | 6 AWG | 11,2 mm² |
| SBS50BLU#10/12* | 48V | | 10-12 AWG | 11,2 mm² |
| SBS50RED#6* | 24V |  | 6 AWG | 11,2 mm² |
| SBS50RED#10/12* | 24V | | 10-12 AWG | 11,2 mm² |
| SBS50RED#10/12* | 80V |  | 6 AWG | 11,2 mm² |
| SBS50BLK#10/12* | 80V | | 10-12 AWG | 11,2 mm² |
| SBS50BRN#6* | 96V |  | 6 AWG | 11,2 mm² |
| SBS50BRN#10/12* | 96V | | 10-12 AWG | 11,2 mm² |
| SBS50WHT#6* | 192V |  | 6 AWG | 11,2 mm² |
| SBS50WT#10/12* | 192V | | 10-12 AWG | 11,2 mm² |
* Special designs for smaller/larger cross sections on request.

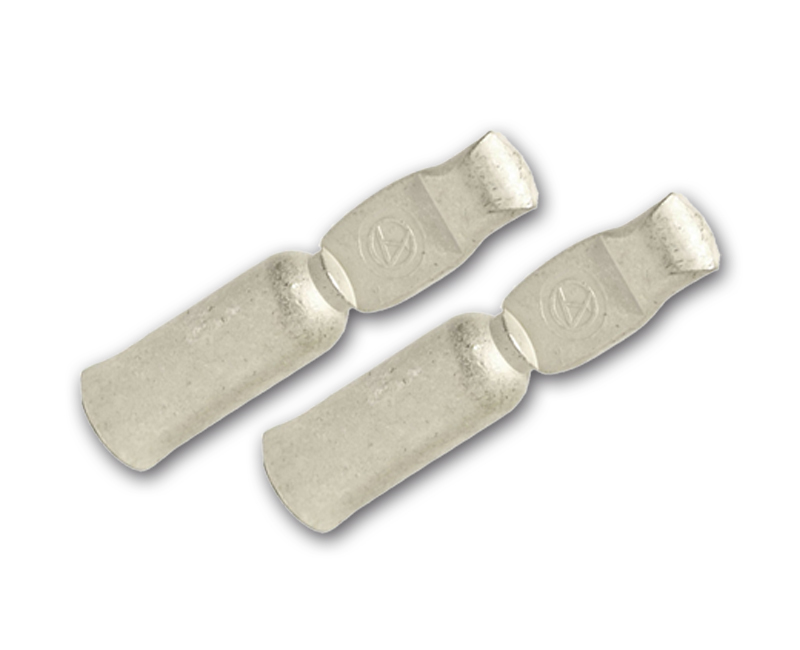

Auxiliary contact sets (2 pieces) | 50A
| Article no. | Cross section in AWG | Cross section in mm² |
| 1339G2 | 6-8 AWG | 11,2 mm² |
| 1339G3 | 6-10/12 AWG | 11,2 mm² |
| 1339G5 | 6-14/16 AWG | 11,2 mm² |

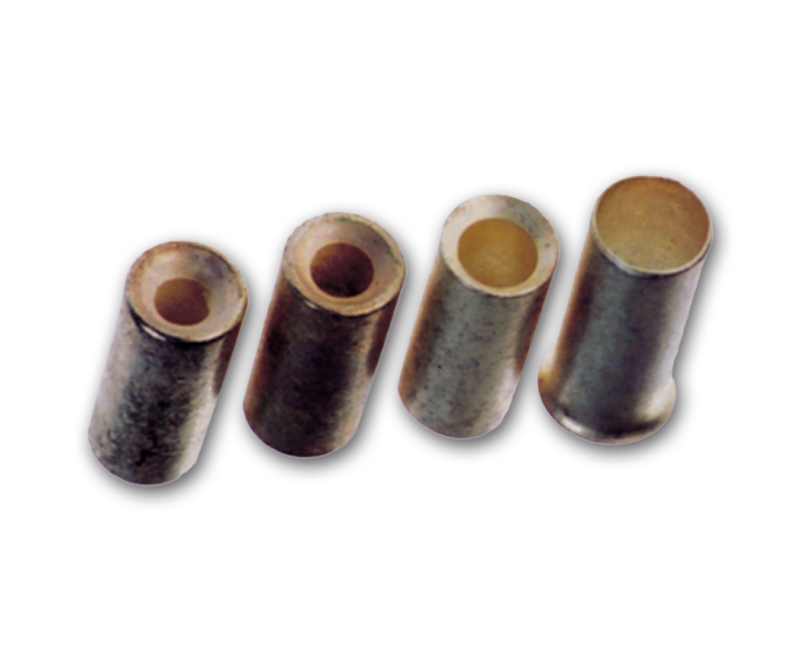

Accessories reducing sleeves for SBS50
| Article no. | Cross section in AWG | Application with: |
| 5912 | 6-8 AWG | 1339G2 |
| 5910 | 6-10/12 AWG | 1339G2 |
| 5913 | 6-14/16 AWG | 1339G2 |
Accessories cable clamps for SBS50
| Article no. |
| 990 |
| 990G1 |
| 913E |
