Description:
The "SB" connectors include 2-pin plugs for 50 to 350 amps nominal current. A 3-pin version for 175 amps is also available. A set of reducing sleeves allows proper adaptation to different cable diameters.
Scope of application:
2-pole plugs for 50A, 120A, 175A and 350A rated current, 3-pole plugs for 175A, reduction sleeves and accessories.
Additional accessories in the use of the connectors are:
- "A-frame" handles
- Release lever devices
- Strain relief
- Protective caps

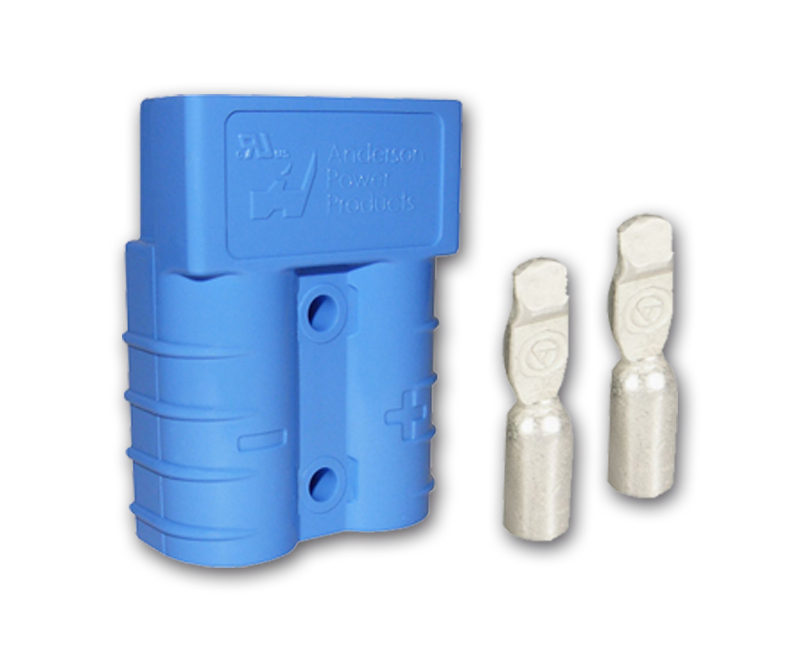

SB50 | 50A connector 2-pin, complete, housing + 2 contacts
Datasheet SB50 connector
| Article no. | Volt | Color | Cross section in AWG | Cross section in mm² |
|---|---|---|---|---|
| 6319 | 36V |  | 6 AWG | 12-16 mm² |
| 6319 G1 | 36V | | 10-12 AWG | 6 mm² |
| 6331 G1 | 24V | | 6 AWG | 12-16 mm² |
| 6331 G2 | 24V | | 10-12 AWG | 6 mm² |
| 6331 G3 | 80V |  | 6 AWG | 12-16 mm² |
| 6331 G4 | 80V | | 10-12 AWG | 6 mm² |
| 6331 G5 | 48V |  | 6 AWG | 12-16 mm² |
| 6331 G6 | 48V | | 10-12 AWG | 6 mm² |
| 6331 G7 | 12V |  | 6 AWG | 12-16 mm² |
| 6331 G8 | 12V | | 10-12 AWG | 6 mm² |
| 6331 G9 | 72V |  | 6 AWG | 12-16 mm² |
| 6331 G10 | 72V | | 10-12 AWG | 6 mm² |
| 6331 G11 | 18V |  | 6 AWG | 12-16 mm² |
| 6331 G12 | 18V | | 10-12 AWG | 6 mm² |

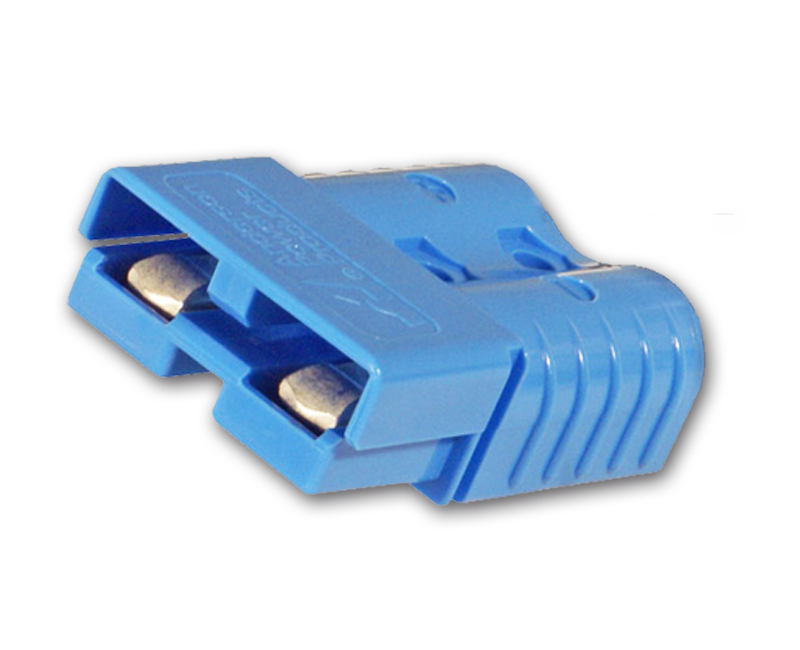

SB120 | 120A connector 2-pin, complete, housing + 2 contacts
| Article no. | Volt | Color | Cross section in AWG | Cross section in mm² |
| 6800G1 | 36V |  | 2 AWG | 25-30 mm² |
| 6800G2 | 48V |  | 4 AWG | 16-25 mm² |
| 6800G3 | 24V |  | 6 AWG | 12-16 mm² |
| 6801G1 | 24V | | 2 AWG | 25-30 mm² |
| 6801G2 | 48V | | 4 AWG | 16-25 mm² |
| 6801G3 | 24V | | 6 AWG | 12-16 mm² |

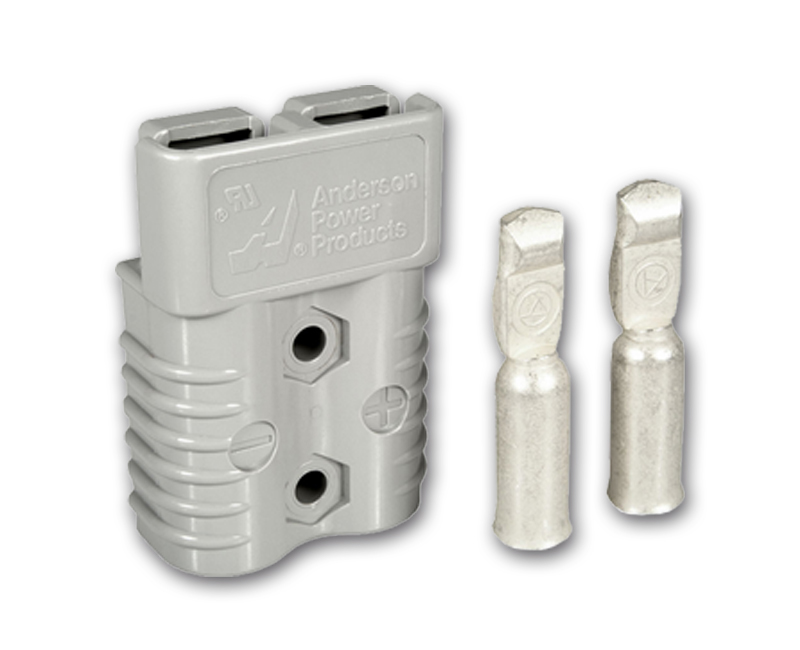

SB175 | 175A connector 2-pin, complete, housing + 2 contacts
| Article no. | Volt | Color | Cross section in AWG | Cross section in mm² |
| 6325G1* | 36V | | 1/0 AWG | 50 mm² |
| 6326G1* | 48V | | 1/0 AWG | 50 mm² |
| 6327G1* | 18V |  | 1/0 AWG | 50 mm² |
| 6328G1* | 12V |  | 1/0 AWG | 50 mm² |
| 6329G1* | 24V | | 1/0 AWG | 50 mm² |
* Smaller contact cross sections available: please use „G5" instead of „G1" for AWG2 (approx. 25mm²) or „G6" instead of „G1" for AWG4 (approx. 16mm²)
SB175 | 175A connector 3-pin, complete, housing + 3 contacts
| Article no. | Volt | Color | Cross section in AWG | Cross section in mm² |
| 6316 | 36V | | 1/0 AWG | 50 mm² |

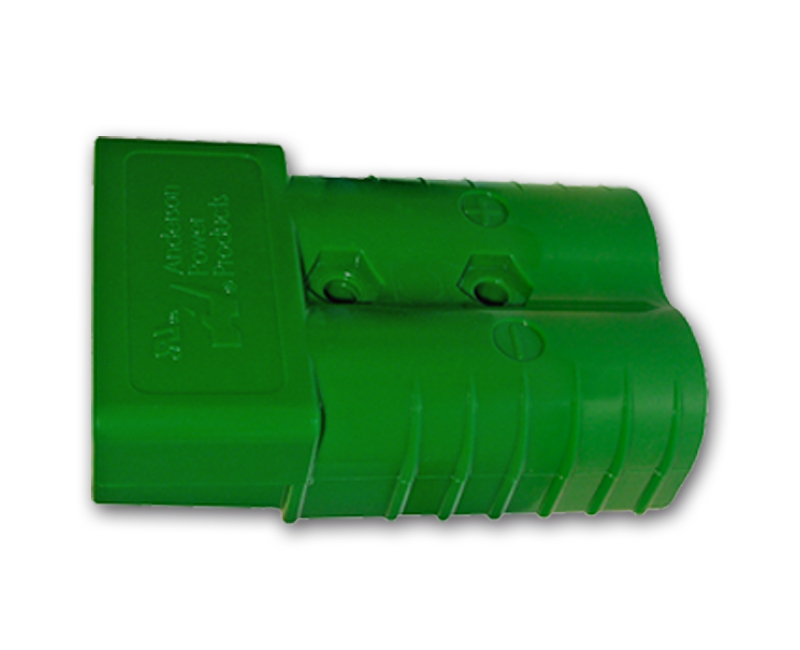

SB350 | 350A connector 2-pin, complete, housing + 2 contacts
| Article no. | Volt | Color | Cross section in AWG | Cross section in mm² |
| 6320G1* | 36V | | 2/0 AWG | 70 mm² |
| 6321G1* | 48V | | 2/0 AWG | 70 mm² |
| 6322G1* | 24V | | 2/0 AWG | 70 mm² |
| 6323G1* | 12V | | 2/0 AWG | 70 mm² |
| 6324G1* | 72V |  | 2/0 AWG | 70 mm² |
* Special versions for larger cross sections on request

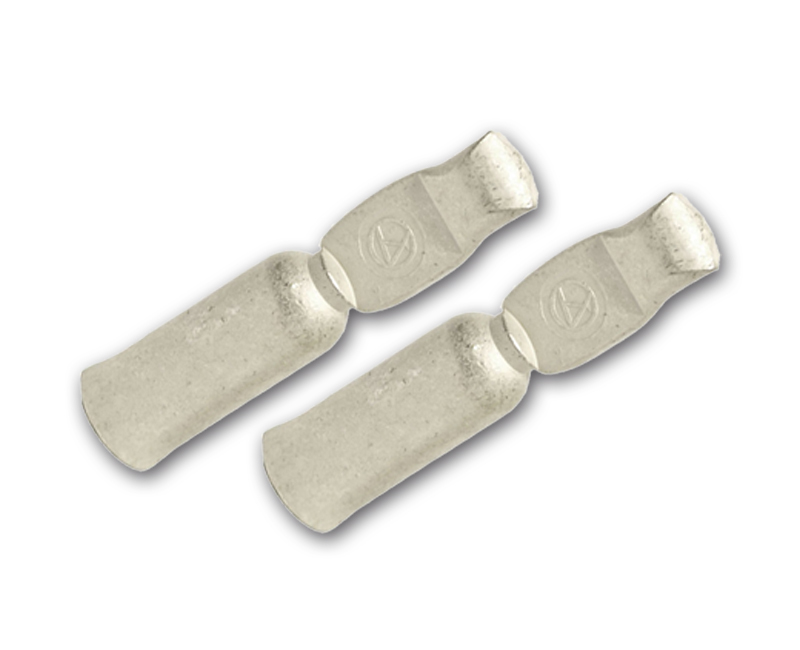

Contact sets (2 pieces)
for SB50
| Article no. | max current | Cross section in AWG | Cross section in mm² |
| 903G1 | 50A | 6 AWG | 12-16 mm² |
| 904G1 | 50A | 12-16 AWG | 6 mm² |
for SB120
| Article no. | max current | Cross section in AWG | Cross section in mm² |
| 6811G1 | 120A | 2 AWG | 33,6 mm² |
| 6811G2 | 120A | 4 AWG | 21,1 mm² |
| 6811G3 | 120A | 6 AWG | 13,3 mm² |
for SB175
| Article no. | max current | Cross section in AWG | Cross section in mm² |
| 944 | 175A | 1/0 AWG | 50 mm² |
| 947 | 175A | 2/0 AWG | 25-35 mm² |
| 948 | 175A | 4/0 AWG | 16-25 mm² |
for SB350
| Article no. | Volt | Cross section in AWG | Cross section in mm² |
| 907 | 350A | 2/0 AWG | 70 mm² |
| 6916 | 350A | 3/0 AWG | 85 mm² |
| 908 | 350A | 4/0 AWG | 107,2 mm² |
| 910 | 350A | 300 MCM | 152 mm² |

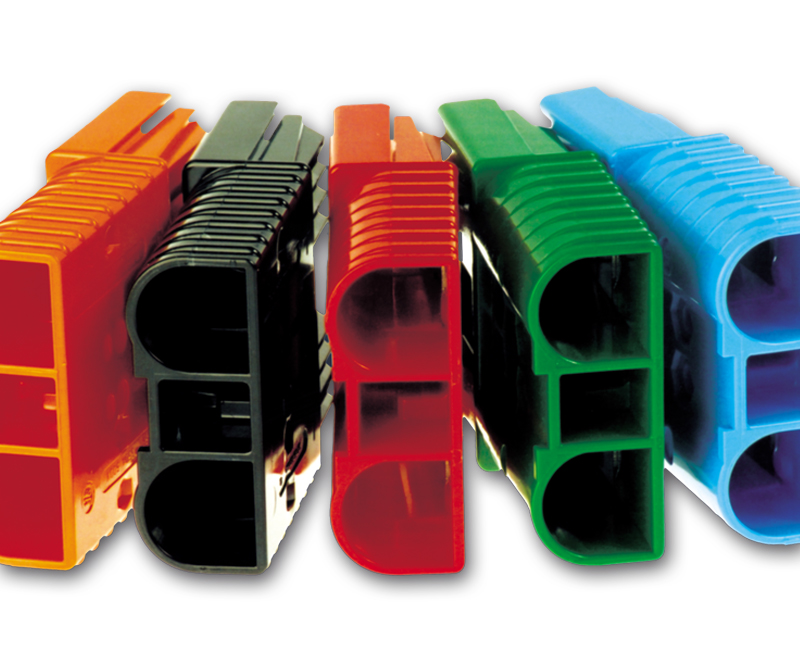

Housing SB connector
| Article no. | Housing | Volt | Color |
| 992 | SB50 | 36V | |
| 992G1 | SB50 | 24V | |
| 992G2 | SB50 | 80V |  |
| 992G4 | SB50 | 48V | |
| 992G5 | SB50 | 12V | |
| 992G6 | SB50 | 72V | |
| 992G7 | SB50 | 18V | |
| 6810G1 | SB120 | 36V | |
| 6810G2 | SB120 | 48V | |
| 940 | SB175 | 36V | |
| 941 | SB175 | 48V | |
| 942 | SB175 | 18V | |
| 943 | SB175 | 12V | |
| 949 | SB175 | 24V | |
| 906 | SB350 | 36V | |
| 912 | SB350 | 48V | |
| 913 | SB350 | 24V | |
| 914 | SB350 | 12V | |
| 931 | SB350 | 72V | |
| 932 | SB350 | 18V | |

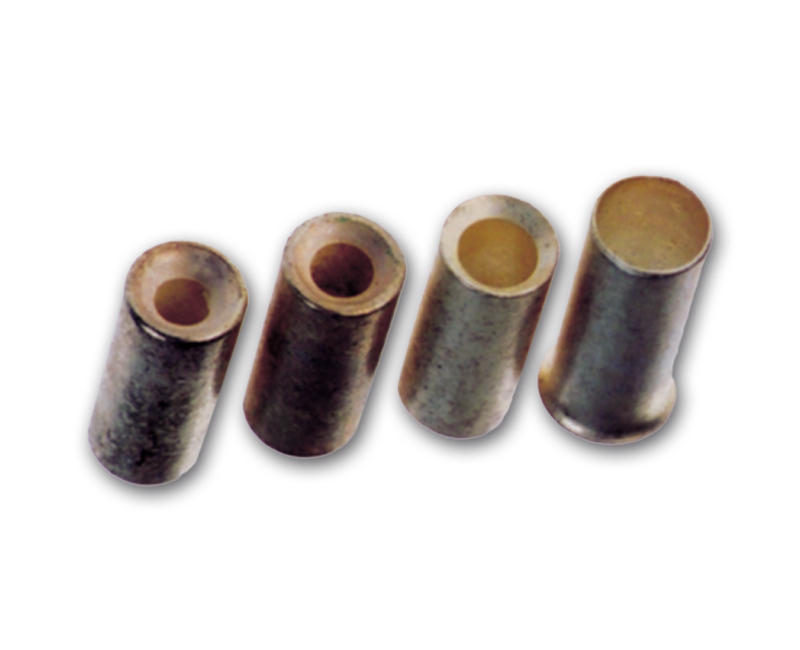

Accessories reduction sleeves SB connector
| Article no. | for connector type: | Cross section in AWG | Cross section in mm² | for contact: |
| 5912 | SB50 | 8 AWG | 8,4 mm² | #6AWG 1307 |
| 5910 | SB50 | 12-10 AWG | 3,3-5,3 mm² | #6AWG 1307 |
| 5913 | SB50 | 16-14 AWG | 1,3-2,1 mm² | #6AWG 1307 |
| 5919 | SB120 | 4 AWG | 21,2 mm² | #2AWG 1319 |
| 5920 | SB120 | 6 AWG | 16 mm² | #2AWG 1319 |
| 5921 | SB120 | 10-8 AWG | 5,3-8,4 mm² | #2AWG 1319 |
| 5687 | SB175 | 1 AWG | 42,4 mm² | 1/0AWG 1382 |
| 5690 | SB175 | 2 AWG | 33,6 mm² | 1/0AWG 1382 |
| 5693 | SB175 | 4 AWG | 21,2 mm² | 1/0AWG 1382 |
| 5663 | SB175 | 6 AWG | 13,3 mm² | 1/0AWG 1382 |
| 5648 | SB175 | 10-8 AWG | 5,3-8,4 mm² | 1/0AWG 1382 |
| 5912 | SB350 | 1/0 AWG | 53,5 mm² | 2/0AWG 907 |

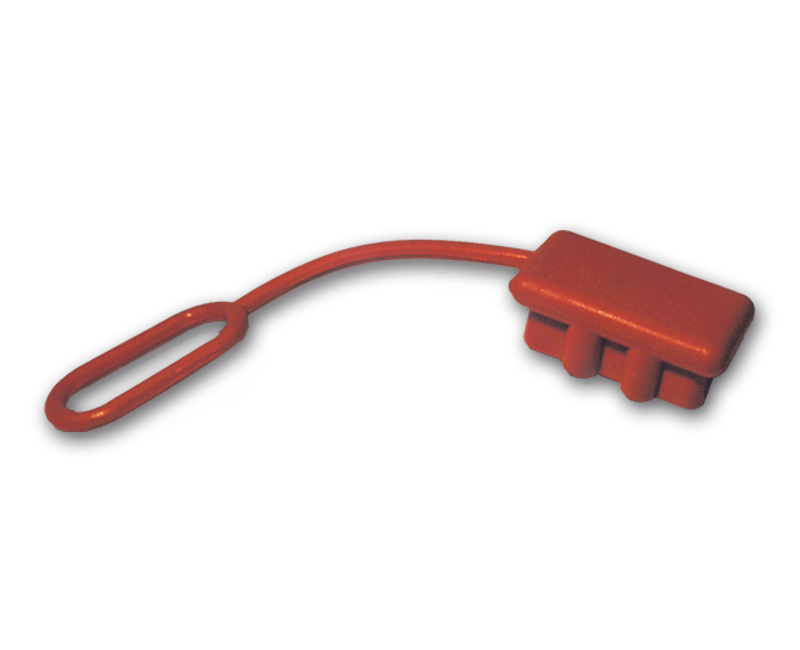

Accessories protection caps connector side
| Article no. | for connector types: | Color |
| 113890P1 | SB50 | |
| 134G2 | SB175 | |
| 134G3 | SB350 | |

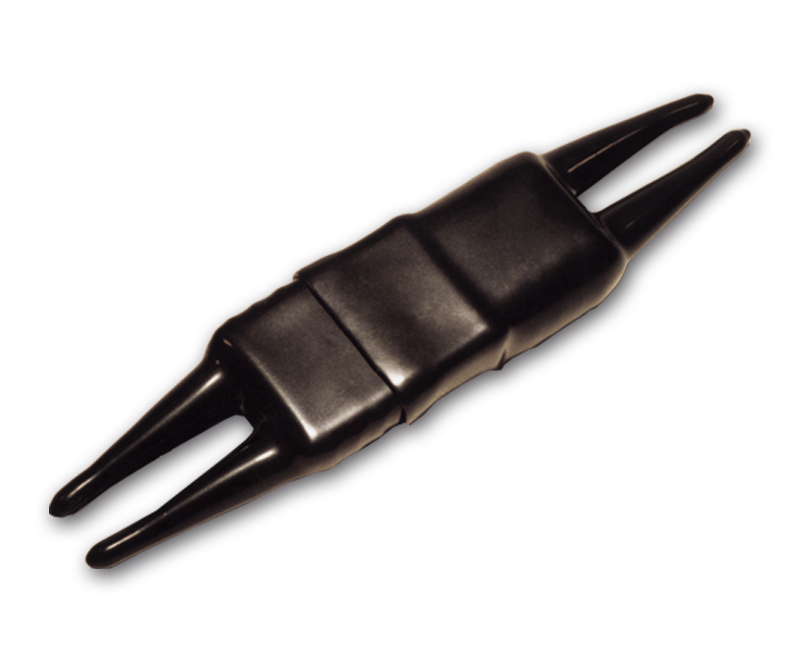

Accessories protection caps cable side, short
| Article no. | for connector types: | Color |
| TB075-S | SB50 | |
| TB075-L | SB175 | |
| NSB175 | SB350 | |
Accessories "A-frame" handle
| Article no. | for connector types: | Color | Version |
| 5-995G1 | SB50 | | "A" Handle |
SB50-HDL-RED | SB50 | | "T" Handle |
| 5-995G2 | SB50 | | "A" Handle |
| 995G1 | SB175 | | "A" Handle |
| 995G3 | SB175 | | "A" Handle |
| 995G20-C | SB175 | | straight |
| 995G2 | SB350 | | "A" Handle |
| 995G4 | SB350 | | "A" Handle |
| 995G10-C | SB350 | | straight |

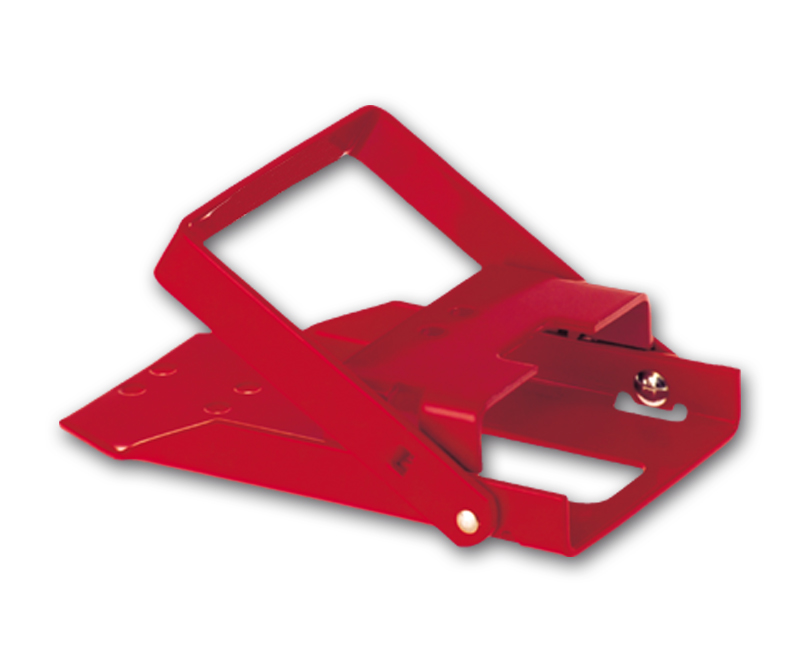

Accessories separating lever device
Article number for connector typeAttachment to ...923G1SB175Battery924G1SB175Vehicle or charger919SB350Battery919G1SB350Vehicle or charger922G1SB350Vehicle or charger

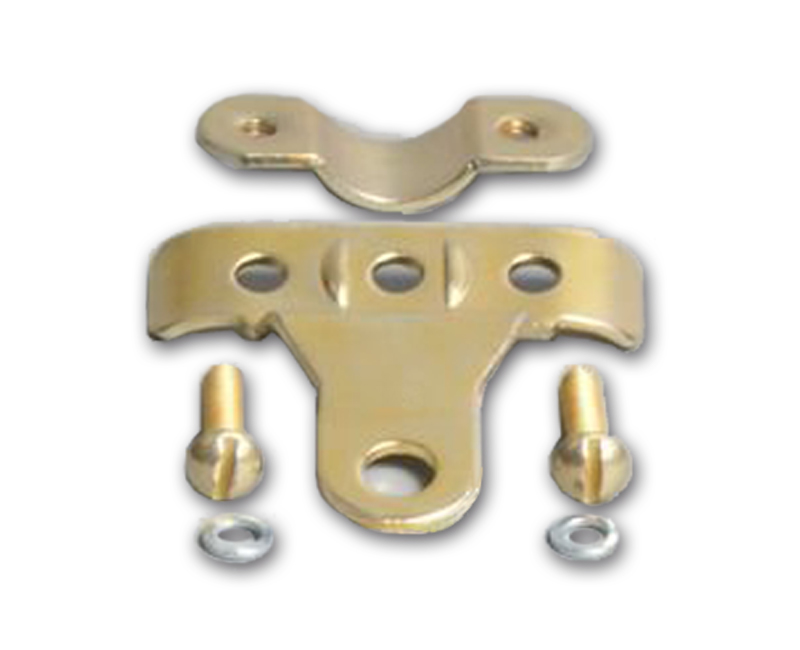

Accessories cable clamps
| Article no. | for connector type: | Version |
| 990 | SB50 | for 2 single cables |
| 5905 | SB50 | for 2-wired cables |
| 945 | SB175 | for 2 single cables |
| 945G3* | SB175 | for 2 single cables |
| 946G1 | SB350 | for 2-wired cables |
| 996G1* | SB350 | for 2 single cables |
* only in connection with the "A-frame" handle
