DIN connectors and sockets 80A

DIN connectors and DIN sockets, 80A complete with strain relief including accessories, spare parts and assembly instructions

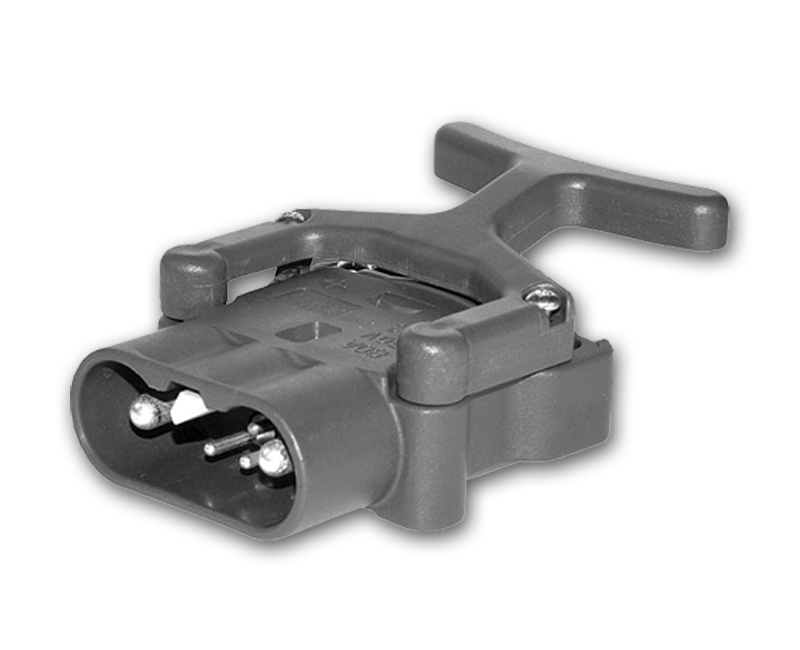

DIN plug | 80A plug, complete with strain relief

E80 connector with grey coding pin for wet batteries

Description	10mm	16mm	25mm	35mm
E80 connector	E80410-0009	E80416-0009	E80425-0009	E80435-0009
... with 2 auxiliary contacts 2.5mm² (bottom)	E80410-0019	E80416-0019	E80425-0019	E80435-0019
... with 2 auxiliary contacts 2.5mm² (bottom)	E80410-0029	E80416-0029	E80425-0029	E80435-0029
... with 2 auxiliary contacts 2.5mm² (top)	E80410-0049	E80416-0049	E80425-0049	E80435-0049
... with air adapter	E80410-0059	E80416-0059	E80425-0059	E80435-0059
... with air adapter and 2 auxiliary contacts 2.5mm² (top)	E80410-0069	E80416-0069	E80425-0069	E80435-0069
... with handle	E80410-1009	E80416-1009	E80425-1009	E80435-1009
... with handle and 2 auxiliary contacts 2.5mm² (bottom)	E80410-1019	E80416-1019	E80425-1019	E80435-1019
... with handle and 2 auxiliary contacts 2.5mm² (top)	E80410-1029	E80416-1029	E80425-1029	E80435-1029
... with handle and 4 auxiliary contacts 2.5mm²	E80410-1049	E80416-1049	E80425-1049	E80435-1049
... with air adapter and handle	E80410-1059	E80416-1059	E80425-1059	E80435-1059
... with air adapter, handle and 2 auxiliary contacts 2.5mm² (top)	E80410-1069	E80416-1069	E80425-1069	E80435-1069

E80 connector with green coding pin for dry batteries

Description	10mm	16mm	25mm	35mm
E80 connector	E80410-0209	E80416-0209	E80425-0209	E80435-0209
... with 2 auxiliary contacts 2.5mm² (bottom)	E80410-0219	E80416-0219	E80425-0219	E80435-0219
... with 2 auxiliary contacts 2.5mm² (bottom)	E80410-0229	E80416-0229	E80425-0229	E80435-0229
... with 2 auxiliary contacts 2.5mm² (top)	E80410-0249	E80416-0249	E80425-0249	E80435-0249
... with air adapter	E80410-0259	E80416-0259	E80425-0259	E80435-0259
... with air adapter and 2 auxiliary contacts 2.5mm² (top)	E80410-0269	E80416-0269	E80425-0269	E80435-0269
... with handle	E80410-1209	E80416-1209	E80425-1209	E80435-1209
... with handle and 2 auxiliary contacts 2.5mm² (bottom)	E80410-1219	E80416-1219	E80425-1219	E80435-1219
... with handle and 2 auxiliary contacts 2.5mm² (top)	E80410-1229	E80416-1229	E80425-1229	E80435-1229
... with handle and 4 auxiliary contacts 2.5mm²	E80410-1249	E80416-1249	E80425-1249	E80435-1249
... with air adapter and handle	E80410-1259	E80416-1259	E80425-1259	E80435-1259
... with air adapter, handle and 2 auxiliary contacts 2.5mm² (top)	E80410-1269	E80416-1269	E80425-1269	E80435-1269

E80 connector with yellow coding pin for universal use

Description	10mm	16mm	25mm	35mm
E80 connector	E80410-0309	E80416-0309	E80425-0309	E80435-0309
... with 2 auxiliary contacts 2.5mm² (bottom)	E80410-0319	E80416-0319	E80425-0319	E80435-0319
... with 2 auxiliary contacts 2.5mm² (bottom)	E80410-0329	E80416-0329	E80425-0329	E80435-0329
... with 2 auxiliary contacts 2.5mm² (top)	E80410-0349	E80416-0349	E80425-0349	E80435-0349
... with air adapter	E80410-0359	E80416-0359	E80425-0359	E80435-0359
... with air adapter and 2 auxiliary contacts 2.5mm² (top)	E80410-0369	E80416-0369	E80425-0369	E80435-0369
... with handle	E80410-1309	E80416-1309	E80425-1309	E80435-1309
... with handle and 2 auxiliary contacts 2.5mm² (bottom)	E80410-1319	E80416-1319	E80425-1319	E80435-1319
... with handle and 2 auxiliary contacts 2.5mm² (top)	E80410-1329	E80416-1329	E80425-1329	E80435-1329
... with handle and 4 auxiliary contacts 2.5mm²	E80410-1349	E80416-1349	E80425-1349	E80435-1349
... with air adapter and handle	E80410-1359	E80416-1359	E80425-1359	E80435-1359
... with air adapter, handle and 2 auxiliary contacts 2.5mm² (top)	E80410-1369	E80416-1369	E80425-1369	E80435-1369

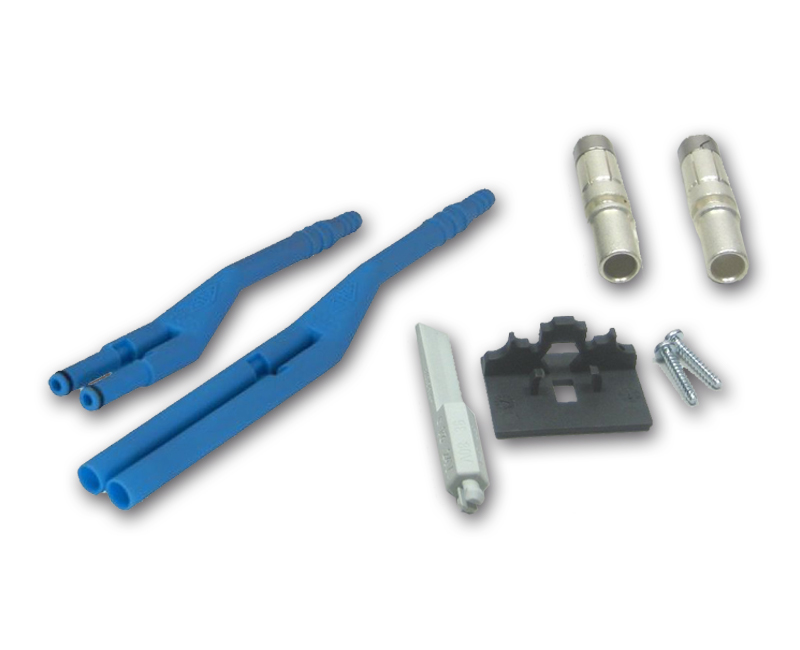

Connector 80A spare parts and accessories

Article no.	Description
E80-1	Connector housing
E80-5	Contact holder
80-9	Coding pin grey for wet battery
80-17	Coding pin green for dry battery
80-19	Coding pin yellow for universal use
E80-6A	Cable clamp 1a
E80-7	Cable clamp 2
P5	Screw for cable clamp (2 pcs. necessary)
80-1010	Power contacts 10 mm
80-1016	Power contacts 16 mm
80-1025	Power contacts 25 mm
80-1035	Power contacts 35 mm
80-3	Air Delivery Voltage Key, male
E80-8	Handle
E80-20	Twin Air Tube, male
E80-30	Auxiliary contact set 2.5 mm2 (pins)

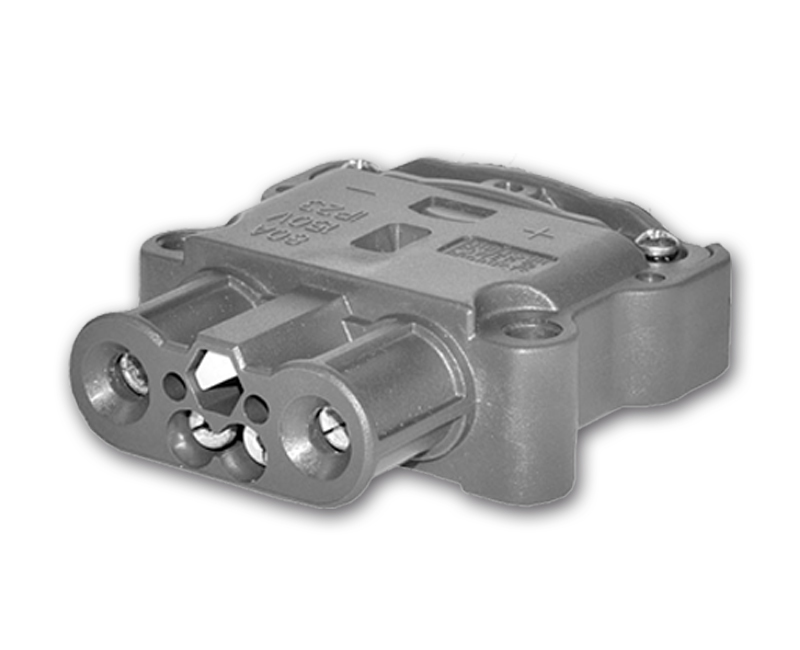

DIN connectors | 80A Sockets, complete with strain relief

E80 socket with grey coding pin for wet batteries

Description	10mm	16mm	25mm	35mm
E80 socket	E80510-0009	E80516-0009	E80525-0009	E80535-0009
... with 2 auxiliary contacts 2.5mm2 (bottom)	E80510-0019	E80516-0019	E80525-0019	E80535-0019
... with 2 auxiliary contacts 2.5mm2 (bottom)	E80510-0029	E80516-0029	E80525-0029	E80535-0029
... with 2 auxiliary contacts 2.5mm2 (top)	E80510-0049	E80516-0049	E80525-0049	E80535-0049
... with air adapter	E80510-0059	E80516-0059	E80525-0059	E80535-0059
... with air adapter and 2 auxiliary contacts 2.5mm2 (top)	E80510-0069	E80516-0069	E80525-0069	E80535-0069
... with handle	E80510-1009	E80516-1009	E80525-1009	E80535-1009
... with handle and 2 auxiliary contacts 2.5mm2 (bottom)	E80510-1019	E80516-1019	E80525-1019	E80535-1019
... with handle and 2 auxiliary contacts 2.5mm2 (top)	E80510-1029	E80516-1029	E80525-1029	E80535-1029
... with handle and 4 auxiliary contacts 2.5mm	E80510-1049	E80516-1049	E80525-1049	E80535-1049
... with air adapter and handle	E80510-1059	E80516-1059	E80525-1059	E80535-1059
... with air adapter, handle and 2 auxiliary contacts 2.5mm2 (top)	E80510-1069	E80516-1069	E80525-1069	E80535-1069

E80 socket with green coding pin for dry cell batteries

Description	10mm	16mm	25mm	35mm
E80 socket	E80510-0209	E80516-0209	E80525-0209	E80535-0209
... with 2 auxiliary contacts 2.5mm2 (bottom)	E80510-0219	E80516-0219	E80525-0219	E80535-0219
... with 2 auxiliary contacts 2.5mm2 (bottom)	E80510-0229	E80516-0229	E80525-0229	E80535-0229
... with 2 auxiliary contacts 2.5mm2 (top)	E80510-0249	E80516-0249	E80525-0249	E80535-0249
... with air adapter	E80510-0259	E80516-0259	E80525-0259	E80535-0259
... with air adapter and 2 auxiliary contacts 2.5mm2 (top)	E80510-0269	E80516-0269	E80525-0269	E80535-0269
... with handle	E80510-1209	E80516-1209	E80525-1209	E80535-1209
... with handle and 2 auxiliary contacts 2.5mm2 (bottom)	E80510-1219	E80516-1219	E80525-1219	E80535-1219
... with handle and 2 auxiliary contacts 2.5mm2 (top)	E80510-1229	E80516-1229	E80525-1229	E80535-1229
... with handle and 4 auxiliary contacts 2.5mm	E80510-1249	E80516-1249	E80525-1249	E80535-1249
... with air adapter and handle	E80510-1259	E80516-1259	E80525-1259	E80535-1259
... with air adapter, handle and 2 auxiliary contacts 2.5mm2 (top)	E80510-1269	E80516-1269	E80525-1269	E80535-1269

E80 socket with yellow coding pin for universal use

Description	10mm	16mm	25mm	35mm
E80 socket	E80510-0309	E80516-0309	E80525-0309	E80535-0309
... with 2 auxiliary contacts 2.5mm2 (bottom)	E80510-0319	E80516-0319	E80525-0319	E80535-0319
... with 2 auxiliary contacts 2.5mm2 (bottom)	E80510-0329	E80516-0329	E80525-0329	E80535-0329
... with 2 auxiliary contacts 2.5mm2 (top)	E80510-0349	E80516-0349	E80525-0349	E80535-0349
... with air adapter	E80510-0359	E80516-0359	E80525-0359	E80535-0359
... with air adapter and 2 auxiliary contacts 2.5mm2 (top)	E80510-0369	E80516-0369	E80525-0369	E80535-0369
... with handle	E80510-1309	E80516-1309	E80525-1309	E80535-1309
... with handle and 2 auxiliary contacts 2.5mm2 (bottom)	E80510-1319	E80516-1319	E80525-1319	E80535-1319
... with handle and 2 auxiliary contacts 2.5mm2 (top)	E80510-1329	E80516-1329	E80525-1329	E80535-1329
... with handle and 4 auxiliary contacts 2.5mm	E80510-1349	E80516-1349	E80525-1349	E80535-1349
... with air adapter and handle	E80510-1359	E80516-1359	E80525-1359	E80535-1359
... with air adapter, handle and 2 auxiliary contacts 2.5mm2 (top)	E80510-1369	E80516-1369	E80525-1369	E80535-1369

Socket 80A Spare parts and accessories

Article no.	Description
E80-2	Box housing
E80-5	Contact holder
80-9	Coding pin grey for wet battery
80-17	Coding pin green for dry battery
80-19	Coding pin yellow for universal use
E80-6A	Cable clamp 1a
E80-7	Cable clamp 2
P5	Screw for cable clamp (2 pcs. necessary)
80-1110	Power contacts 10 mm
80-1116	Power contacts 16 mm
80-1125	Power contacts 25 mm
80-1135	Power contacts 35 mm
80-4	Air Delivery Voltage Key, female
E80-8	Handle
E80-21	Twin Air Tube, female
E80-31	Auxiliary contact set 2.5 mm2 (sockets)
